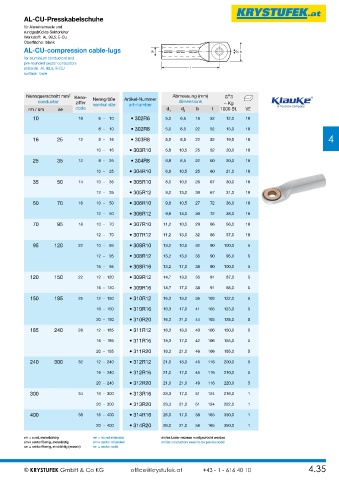

Page 75 - Krystufek_Gesamt-Katalog

AL-CU-Press kabel schuhe
für Aluminiumseile und
rundgedrückte Sektorleiter
Werkstoff: AL 99,5; E-CU
Oberfläche: blank
AL-CU-compression cable-lugs d 1 d 3 b
for aluminium conductors and
pre-rounded sector conductors
material: AL 99,5; E-CU l
surface: bare

2
Nennquerschnitt mm Kenn- Abmessung (mm)
conductor ziffer Nenngröße Artikel-Nummer dimensions ~ Kg
nominal size
art-number
rm / sm se code d 1 d 3 b l 1000 St. VE
10 10 6 - 10 • 302R6 5,0 6,5 18 52 12,0 10
8 - 10 • 302R8 5,0 8,5 22 52 15,0 10
4
16 25 12 8 - 16 • 303R8 5,8 8,5 22 52 19,5 10
10 - 16 • 303R10 5,8 10,5 25 52 20,0 10
25 35 12 8 - 25 • 304R8 6,8 8,5 22 60 20,0 10

10 - 25 • 304R10 6,8 10,5 25 60 21,0 10
35 50 14 10 - 35 • 305R10 8,0 10,5 26 67 30,0 10

12 - 35 • 305R12 8,0 13,0 30 67 31,0 10
50 70 16 10 - 50 • 306R10 9,8 10,5 27 72 36,0 10
12 - 50 • 306R12 9,8 13,0 30 72 38,0 10
70 95 18 10 - 70 • 307R10 11,2 10,5 29 86 56,0 10

12 - 70 • 307R12 11,2 13,0 32 86 57,0 10
95 120 22 10 - 95 • 308R10 13,2 10,5 32 90 100,0 5

12 - 95 • 308R12 13,2 13,0 35 90 95,0 5
16 - 95 • 308R16 13,2 17,0 38 90 100,0 5
120 150 22 12 - 120 • 309R12 14,7 13,0 35 91 87,0 5
16 - 120 • 309R16 14,7 17,0 38 91 88,0 5

150 185 25 12 - 150 • 310R12 16,3 13,0 35 103 122,0 5
16 - 150 • 310R16 16,3 17,0 41 103 123,0 5

20 - 150 • 310R20 16,3 21,0 44 103 128,0 5
185 240 28 12 - 185 • 311R12 18,3 13,0 40 106 150,0 5
16 - 185 • 311R16 18,3 17,0 42 106 155,0 5
20 - 185 • 311R20 18,3 21,0 46 106 155,0 5

240 300 32 12 - 240 • 312R12 21,0 13,0 45 116 200,0 5
16 - 240 • 312R16 21,0 17,0 45 116 210,0 5
20 - 240 • 312R20 21,0 21,0 49 116 220,0 5

300 34 16 - 300 • 313R16 23,3 17,0 51 124 216,0 1
20 - 300 • 313R20 23,3 21,0 51 124 222,0 1
400 38 16 - 400 • 314R16 26,0 17,0 58 165 350,0 1

20 - 400 • 314R20 26,0 21,0 58 165 350,0 1
rm = rund, mehrdrähtig rm = round stranded sm/se Leiter müssen rundgedrückt werden
sm = sektorförmig, mehrdrätig sm = sector stranded sm/se conductors need to be pre-rounded
se = sektorförmig, eindrähtig (massiv) se = sector solid

© KRYSTUFEK GmbH & Co KG office@krystufek.at +43 - 1 - 616 40 10 4.35
