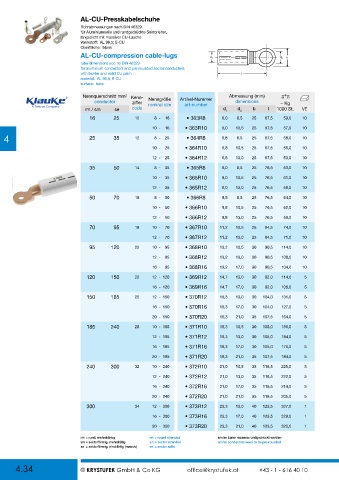

Page 74 - Krystufek_Gesamt-Katalog

AL-CU-Presskabel schuhe
Rohrabmessungen nach DIN 46329
für Aluminiumseile und rundgedrückte Sektorleiter,
längsdicht mit massiver CU-Lasche
Werkstoff: AL 99,5; E-CU
Oberfläche: blank
AL-CU-compression cable-lugs d 1 d 3 b
tube dimensions acc. to DIN 46329
for aluminium conductors and pre-rounded sector conductors,
with barrier and solid CU palm l
material: AL 99,5; E-CU
surface: bare
2
Nennquerschnitt mm Kenn- Abmessung (mm)
conductor ziffer Nenngröße Artikel-Nummer dimensions ~ Kg
art-number
nominal size
rm / sm se code d 1 d 3 b l 1000 St. VE
16 25 12 8 - 16 • 363R8 6,0 8,5 25 67,5 59,0 10
10 - 16 • 363R10 6,0 10,5 25 67,5 57,0 10
4 25 35 12 8 - 25 • 364R8 6,8 8,5 25 67,5 58,0 10

10 - 25 • 364R10 6,8 10,5 25 67,5 56,0 10
12 - 25 • 364R12 6,8 13,0 25 67,5 53,0 10
35 50 14 8 - 35 • 365R8 8,0 8,5 25 76,5 63,0 10
10 - 35 • 365R10 8,0 10,5 25 76,5 61,0 10

12 - 35 • 365R12 8,0 13,0 25 76,5 58,0 10
50 70 16 8 - 50 • 366R8 9,8 8,5 25 76,5 64,0 10
10 - 50 • 366R10 9,8 10,5 25 76,5 62,0 10
12 - 50 • 366R12 9,8 13,0 25 76,5 59,0 10
70 95 18 10 - 70 • 367R10 11,2 10,5 25 84,5 74,0 10

12 - 70 • 367R12 11,2 13,0 25 84,5 71,0 10
95 120 22 10 - 95 • 368R10 13,2 10,5 30 90,5 114,0 10
12 - 95 • 368R12 13,2 13,0 30 90,5 108,0 10
16 - 95 • 368R16 13,2 17,0 30 90,5 104,0 10
120 150 22 12 - 120 • 369R12 14,7 13,0 30 92,0 114,0 5
16 - 120 • 369R16 14,7 17,0 30 92,0 108,0 5
150 185 25 12 - 150 • 370R12 16,3 13,0 30 104,0 131,0 5

16 - 150 • 370R16 16,3 17,0 30 104,0 127,0 5
20 - 150 • 370R20 16,3 21,0 35 107,5 164,0 5
185 240 28 10 - 185 • 371R10 18,3 10,5 30 105,0 186,0 5
12 - 185 • 371R12 18,3 13,0 30 105,0 184,0 5

16 - 185 • 371R16 18,3 17,0 30 105,0 176,0 5
20 - 185 • 371R20 18,3 21,0 35 107,5 184,0 5
240 300 32 10 - 240 • 372R10 21,0 10,5 35 118,5 225,0 5
12 - 240 • 372R12 21,0 13,0 35 118,5 222,0 5
16 - 240 • 372R16 21,0 17,0 35 118,5 214,0 5
20 - 240 • 372R20 21,0 21,0 35 118,5 205,0 5
300 34 12 - 300 • 373R12 23,3 13,0 40 123,5 337,0 1

16 - 300 • 373R16 23,3 17,0 40 123,5 329,0 1
20 - 300 • 373R20 23,3 21,0 40 123,5 320,0 1
rm = rund, mehrdrähtig rm = round stranded sm/se Leiter müssen rundgedrückt werden
sm = sektorförmig, mehrdrätig sm = sector stranded sm/se conductors need to be pre-rounded
se = sektorförmig, eindrähtig (massiv) se = sector solid
