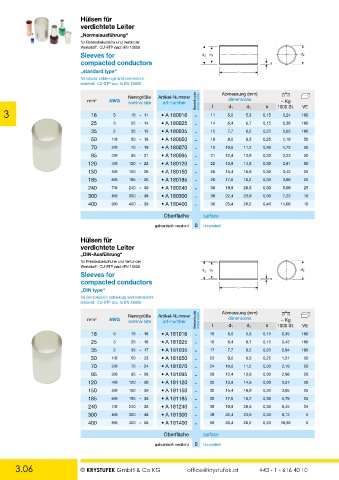

P. 22
Hülsen für
verdichtete Leiter
„Normalausführung“
für Rohrkabelschuhe und Verbinder
Werkstoff: CU-ETP nach EN 13600
Sleeves for d 2 d 1 d 2
compacted conductors s
„standard type“ l
for tubular cable-lugs and connectors
material: CU-ETP acc. to EN 13600
Nenngröße Artikel-Nummer Abmessung (mm)
mm 2 AWG nominal size art-number Bestellcode order code I dimensions s 1000 St. VE
~ Kg
d1
d2
3 16 5 16 - 11 • A 180016 .. 11 5,0 5,3 0,15 0,24 100
25 3 25 - 14 • A 180025 .. 14 6,4 6,7 0,15 0,38 100
35 2 35 - 15 • A 180035 .. 15 7,7 8,2 0,25 0,83 100
50 1/0 50 - 18 • A 180050 .. 18 9,0 9,5 0,25 1,18 50
70 2/0 70 - 19 • A 180070 .. 19 10,6 11,2 0,30 1,73 50
95 3/0 95 - 21 • A 180095 .. 21 12,4 13,0 0,30 2,23 50
120 4/0 120 - 22 • A 180120 .. 22 13,9 14,5 0,30 2,61 50
150 5/0 150 - 26 • A 180150 .. 26 15,4 16,0 0,30 3,42 25
185 6/0 185 - 26 • A 180185 .. 26 17,6 18,2 0,30 3,96 25
240 7/0 240 - 30 • A 180240 .. 30 19,9 20,5 0,30 5,08 25
300 8/0 300 - 38 • A 180300 .. 38 22,4 23,0 0,30 7,23 10
400 9/0 400 - 38 • A 180400 .. 38 25,4 26,2 0,40 11,08 10
Oberfläche surface
galvanisch verzinnt 0 tin-plated
Hülsen für
verdichtete Leiter
„DIN-Ausführung“
für Presskabelschuhe und Verbinder
Werkstoff: CU-ETP nach EN 13600 d 2 d 1 d 2
Sleeves for
compacted conductors s
„DIN type“ l
for compression cable-lugs and connectors
material: CU-ETP acc. to EN 13600
Nenngröße Artikel-Nummer Abmessung (mm)
mm 2 AWG nominal size art-number Bestellcode order code I dimensions s 1000 St. VE
~ Kg
d1
d2
16 5 16 - 16 • A 181016 .. 16 5,0 5,3 0,15 0,35 100
25 3 25 - 16 • A 181025 .. 16 6,4 6,7 0,15 0,43 100
35 2 35 - 17 • A 181035 .. 17 7,7 8,2 0,25 0,94 100
50 1/0 50 - 23 • A 181050 .. 23 9,0 9,5 0,25 1,51 50
70 2/0 70 - 24 • A 181070 .. 24 10,6 11,2 0,30 2,19 50
95 3/0 95 - 28 • A 181095 .. 28 12,4 13,0 0,30 2,98 50
120 4/0 120 - 30 • A 181120 .. 30 13,9 14,5 0,30 3,57 50
150 5/0 150 - 30 • A 181150 .. 30 15,4 16,0 0,30 3,95 25
185 6/0 185 - 38 • A 181185 .. 38 17,6 18,2 0,30 5,79 25
240 7/0 240 - 38 • A 181240 .. 38 19,9 20,5 0,30 6,45 25
300 8/0 300 - 48 • A 181300 .. 48 22,4 23,0 0,30 9,13 5
400 9/0 400 - 58 • A 181400 .. 58 25,4 26,2 0,40 16,92 5
Oberfläche surface
galvanisch verzinnt 0 tin-plated
3.06 © KRYSTUFEK GmbH & Co KG office@krystufek.at +43 - 1 - 616 40 10
