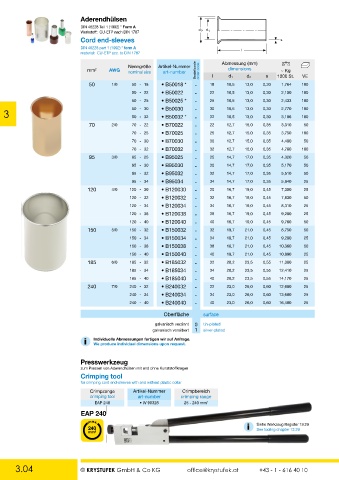

Aderendhülsen
DIN 46228 Teil 1 (1992) * Form A d 2 d 1
Werkstoff: CU-ETP nach DIN 1787
Cord end-sleeves s
DIN 46228 part 1 (1992) * form A l
material: CU-ETP acc. to DIN 1787
Nenngröße Artikel-Nummer Abmessung (mm)
mm 2 AWG nominal size art-number Bestellcode order code I dimensions s 1000 St. VE
~ Kg
d2
d1
50 1/0 50 - 18 • B50018 * .. 18 10,5 13,0 0,30 1,764 100
50 - 22 • B50022 .. 22 10,5 13,0 0,30 2,150 100
50 - 25 • B50025 * .. 25 10,5 13,0 0,30 2,433 100
3 50 - 30 • B50030 .. 30 10,5 13,0 0,30 2,770 100
..
• B50032 *
50 - 32
3,106
13,0
0,30
32
10,5
100
70 2/0 70 - 22 • B70022 .. 22 12,7 15,0 0,35 3,310 50
70 - 25 • B70025 .. 25 12,7 15,0 0,35 3,750 100
70 - 30 • B70030 .. 30 12,7 15,0 0,35 4,480 50
70 - 32 • B70032 .. 32 12,7 15,0 0,35 4,780 100
95 3/0 95 - 25 • B95025 .. 25 14,7 17,0 0,35 4,320 50
95 - 30 • B95030 .. 30 14,7 17,0 0,35 5,170 50
95 - 32 • B95032 .. 32 14,7 17,0 0,35 5,510 50
95 - 34 • B95034 .. 34 14,7 17,0 0,35 5,840 25
120 4/0 120 - 30 • B120030 .. 30 16,7 19,0 0,45 7,350 25
120 - 32 • B120032 .. 32 16,7 19,0 0,45 7,830 50
120 - 34 • B120034 .. 34 16,7 19,0 0,45 8,310 25
120 - 38 • B120038 .. 38 16,7 19,0 0,45 9,280 25
120 - 40 • B120040 .. 40 16,7 19,0 0,45 9,760 50
150 5/0 150 - 32 • B150032 .. 32 18,7 21,0 0,45 8,750 50
150 - 34 • B150034 .. 34 18,7 21,0 0,45 9,280 25
150 - 38 • B150038 .. 38 18,7 21,0 0,45 10,360 50
150 - 40 • B150040 .. 40 18,7 21,0 0,45 10,890 25
185 6/0 185 - 32 • B185032 .. 32 20,2 23,5 0,55 11,380 25
185 - 34 • B185034 .. 34 20,2 23,5 0,55 12,410 25
185 - 40 • B185040 .. 40 20,2 23,5 0,55 14,170 25
240 7/0 240 - 32 • B240032 .. 32 23,0 26,0 0,60 12,680 25
240 - 34 • B240034 .. 34 23,0 26,0 0,60 13,600 25
240 - 40 • B240040 .. 40 23,0 26,0 0,60 16,400 25
Oberfläche surface
galvanisch verzinnt 0 tin-plated
galvanisch versilbert 1 silver-plated
i Individuelle Abmessungen fertigen wir auf Anfrage.
We produce individual dimensions upon request.
Presswerkzeug
zum Pressen von Aderendhülsen mit und ohne Kunststoffkragen
Crimping tool
for crimping cord end-sleeves with and without plastic collar
Crimpzange Artikel-Nummer Crimpbereich
crimping tool art-number crimping range
EAP 240 • W 90328 25 - 240 mm 2
EAP 240
i Siehe Werkzeug Register 13.29
240 See tooling chapter 13.29
mm²
