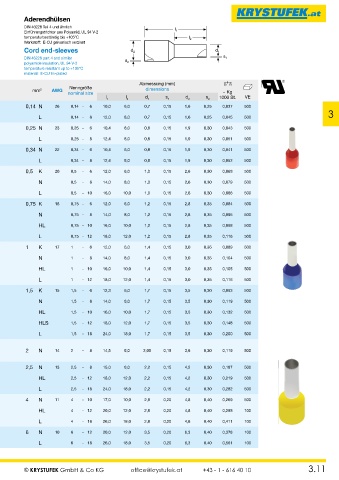

Page 27 - Krystufek_Gesamt-Katalog
P. 27
Aderendhülsen
DIN 46228 Teil 4 und ähnlich
Einführungstrichter aus Polyamid, UL 94 V-2
temperaturbeständig bis +105°C
Werkstoff: E-CU galvanisch verzinnt
Cord end-sleeves
DIN 46228 part 4 and similar
polyamide insulation, UL 94 V-2
temperature resistant up to +105°C
material: E-CU tin-plated
WE TM DIN Abmessung (mm)
Nenngröße
mm 2 Farbkennung Art.-Nummer Farbkennung Art.-Nummer Farbkennung Art.-Nummer mm 2 AWG nominal size dimensions ~ Kg
colour-code art-number colour-code art-number colour-code art-number l 1 l 2 d 1 s 1 d 2 s 2 1000 St. VE
0,14 N grau • A00155 braun • A00152 grau • A00155 0,14 N 26 0,14 - 6 10,0 6,0 0,7 0,15 1,6 0,25 0,037 500
L grey • A00185 brown • A00182 grey • A00185 L 0,14 - 8 12,0 8,0 0,7 0,15 1,6 0,25 0,045 500 3
0,25 N hellblau • A00257 violett • A00252 gelb • A00255 0,25 N 23 0,25 - 6 10,4 6,0 0,8 0,15 1,9 0,30 0,043 500
L light-blue • A00287 violet • A00282 yellow • A00285 L 0,25 - 8 12,4 8,0 0,8 0,15 1,9 0,30 0,051 500
0,34 N türkis • A00355 pink • A00352 türkis • A00355 0,34 N 22 0,34 - 6 10,4 6,0 0,8 0,15 1,9 0,30 0,041 500
L turquoise • A00385 pink • A00382 turquoise • A00385 L 0,34 - 8 12,4 8,0 0,8 0,15 1,9 0,30 0,052 500
0,5 K • A00537 • A00535 • A00535 0,5 K 20 0,5 - 6 12,0 6,0 1,0 0,15 2,6 0,30 0,068 500
orange weiß weiß
N • A00557 • A00555 • A00555 N 0,5 - 8 14,0 8,0 1,0 0,15 2,6 0,30 0,079 500
orange white white
L • A00577 • A00575 • A00575 L 0,5 - 10 16,0 10,0 1,0 0,15 2,6 0,30 0,086 500
0,75 K • A00737 • A00732 • A00735 0,75 K 18 0,75 - 6 12,0 6,0 1,2 0,15 2,8 0,35 0,084 500
N weiß • A00757 blau • A00752 grau • A00755 N 0,75 - 8 14,0 8,0 1,2 0,15 2,8 0,35 0,095 500
HL white • A00777 blue • A00772 grey • A00775 HL 0,75 - 10 16,0 10,0 1,2 0,15 2,8 0,35 0,098 500
L • A00787 • A00782 • A00785 L 0,75 - 12 18,0 12,0 1,2 0,15 2,8 0,35 0,116 500
1 K • A01037 • A01035 • A01035 1 K 17 1 - 6 12,0 6,0 1,4 0,15 3,0 0,35 0,089 500
N gelb • A01057 rot • A01055 rot • A01055 N 1 - 8 14,0 8,0 1,4 0,15 3,0 0,35 0,104 500
HL yellow • A01077 red • A01075 red • A01075 HL 1 - 10 16,0 10,0 1,4 0,15 3,0 0,35 0,105 500
L • A01087 • A01085 • A01085 L 1 - 12 18,0 12,0 1,4 0,15 3,0 0,35 0,116 500
1,5 K • A01537 • A01535 • A01535 1,5 K 15 1,5 - 6 12,3 6,0 1,7 0,15 3,5 0,30 0,093 500
N • A01557 • A01555 • A01555 N 1,5 - 8 14,0 8,0 1,7 0,15 3,5 0,30 0,119 500
rot schwarz schwarz
HL • A01577 • A01575 • A01575 HL 1,5 - 10 16,0 10,0 1,7 0,15 3,5 0,30 0,132 500
red black black
HLS • A01567 • A01565 • A01565 HLS 1,5 - 12 18,0 12,0 1,7 0,15 3,5 0,30 0,148 500
L • A01587 • A01585 • A01585 L 1,5 - 18 24,0 18,0 1,7 0,15 3,5 0,30 0,200 500
gelb
2 N • A02057 2 N 14 2 - 8 14,5 8,0 2,05 0,15 3,6 0,30 0,119 500
yellow
2,5 N • A02555 • A02552 • A02555 2,5 N 13 2,5 - 8 15,0 8,0 2,2 0,15 4,2 0,30 0,187 500
blau grau blau
HL • A02575 • A02572 • A02575 HL 2,5 - 12 18,0 12,0 2,2 0,15 4,2 0,30 0,219 500
blue grey blue
L • A02585 • A02582 • A02585 L 2,5 - 18 24,0 18,0 2,2 0,15 4,2 0,30 0,282 500
4 N • A04055 • A04052 • A04055 4 N 11 4 - 10 17,0 10,0 2,8 0,20 4,8 0,40 0,269 500
grau orange grau
HL • A04075 • A04072 • A04075 HL 4 - 12 20,0 12,0 2,8 0,20 4,8 0,40 0,298 100
grey orange grey
L • A04085 • A04082 • A04085 L 4 - 18 26,0 18,0 2,8 0,20 4,8 0,40 0,411 100
6 N schwarz • A06057 grün • A06052 gelb • A06055 6 N 10 6 - 12 20,0 12,0 3,5 0,20 6,3 0,40 0,378 100
L black • A06087 green • A06082 yellow • A06085 L 6 - 18 26,0 18,0 3,5 0,20 6,3 0,40 0,561 100
