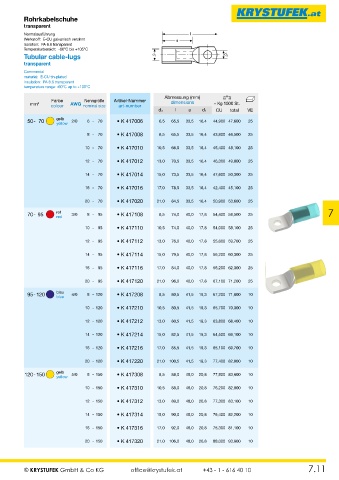

Page 107 - Krystufek_Gesamt-Katalog
P. 107
Rohrkabelschuhe
transparent
Normalausführung l
Werkstoff: E-CU galvanisch verzinnt a
Isolation: PA 6.6 transparent
Temperaturbereich: -60°C bis +105°C
Tubular cable-lugs d 1 d 3
transparent
Commercial
material: E-CU tin-plated
insulation: PA 6.6 transparent
temperature range: -60°C up to +105°C
Abmessung (mm)
Farbe Nenngröße Artikel-Nummer
mm 2 colour AWG nominal size art-number dimensions ~ Kg 1000 St.
d3 l a d1 CU total VE
50- 70 gelb 2/0 6 - 70 • K 417006 6,5 65,5 33,5 16,4 44,900 47,600 25
yellow
8 - 70 • K 417008 8,5 65,5 33,5 16,4 43,800 46,500 25
10 - 70 • K 417010 10,5 66,5 33,5 16,4 45,400 48,100 25
12 - 70 • K 417012 13,0 70,5 33,5 16,4 46,300 49,000 25
14 - 70 • K 417014 15,0 73,5 33,5 16,4 47,600 50,300 25
16 - 70 • K 417016 17,0 78,5 33,5 16,4 42,400 45,100 25
20 - 70 • K 417020 21,0 84,5 33,5 16,4 50,900 53,600 25
70- 95 rot 3/0 8 - 95 • K 417108 8,5 74,0 40,0 17,8 54,400 58,500 25 7
red
10 - 95 • K 417110 10,5 74,0 40,0 17,8 54,000 58,100 25
12 - 95 • K 417112 13,0 76,0 40,0 17,8 55,600 59,700 25
14 - 95 • K 417114 15,0 79,5 40,0 17,8 56,200 60,300 25
16 - 95 • K 417116 17,0 84,0 40,0 17,8 58,200 62,300 25
20 - 95 • K 417120 21,0 96,0 40,0 17,8 67,100 71,200 25
95-120 blau 4/0 8 - 120 • K 417208 8,5 80,5 41,5 19,3 67,200 71,800 10
blue
10 - 120 • K 417210 10,5 80,5 41,5 19,3 65,700 70,300 10
12 - 120 • K 417212 13,0 80,5 41,5 19,3 63,800 68,400 10
14 - 120 • K 417214 15,0 82,5 41,5 19,3 64,500 69,100 10
16 - 120 • K 417216 17,0 85,5 41,5 19,3 65,100 69,700 10
20 - 120 • K 417220 21,0 100,5 41,5 19,3 77,400 82,000 10
120-150 gelb 5/0 8 - 150 • K 417308 8,5 88,0 48,0 20,8 77,800 83,600 10
yellow
10 - 150 • K 417310 10,5 88,0 48,0 20,8 76,200 82,000 10
12 - 150 • K 417312 13,0 89,0 48,0 20,8 77,300 83,100 10
14 - 150 • K 417314 15,0 90,0 48,0 20,8 76,400 82,200 10
16 - 150 • K 417316 17,0 92,0 48,0 20,8 75,300 81,100 10
20 - 150 • K 417320 21,0 106,0 48,0 20,8 88,000 93,800 10
© KRYSTUFEK GmbH & Co KG office@krystufek.at +43 - 1 - 616 40 10 7.11
