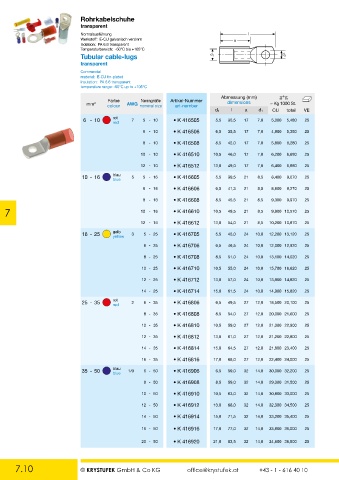

P. 106
Rohrkabelschuhe
transparent
Normalausführung l
Werkstoff: E-CU galvanisch verzinnt a
Isolation: PA 6.6 transparent
Temperaturbereich: -60°C bis +105°C
Tubular cable-lugs d 1 d 3
transparent
Commercial
material: E-CU tin-plated
insulation: PA 6.6 transparent
temperature range: -60°C up to +105°C
Abmessung (mm)
Farbe Nenngröße Artikel-Nummer
mm 2 colour AWG nominal size art-number dimensions ~ Kg 1000 St.
d3 l a d1 CU total VE
6 - 10 rot 7 5 - 10 • K 416505 5,5 35,5 17 7,0 5,000 5,480 25
red
6 - 10 • K 416506 6,5 35,5 17 7,0 4,900 5,380 25
8 - 10 • K 416508 8,5 42,0 17 7,0 5,800 6,280 25
10 - 10 • K 416510 10,5 46,0 17 7,0 6,200 6,680 25
12 - 10 • K 416512 13,0 49,0 17 7,0 6,400 6,880 25
10 - 16 blau 5 5 - 16 • K 416605 5,5 39,5 21 8,5 8,400 9,070 25
blue
6 - 16 • K 416606 6,5 41,3 21 8,5 8,600 9,270 25
8 - 16 • K 416608 8,5 45,5 21 8,5 9,300 9,970 25
7 10 - 16 • K 416610 10,5 49,5 21 8,5 9,900 10,570 25
12 - 16 • K 416612 13,0 54,0 21 8,5 10,200 10,870 25
16 - 25 gelb 3 5 - 25 • K 416705 5,5 45,0 24 10,0 12,200 13,120 25
yellow
6 - 25 • K 416706 6,5 46,5 24 10,0 12,000 12,920 25
8 - 25 • K 416708 8,5 51,0 24 10,0 13,100 14,020 25
10 - 25 • K 416710 10,5 55,0 24 10,0 15,700 16,620 25
12 - 25 • K 416712 13,0 57,0 24 10,0 13,900 14,820 25
14 - 25 • K 416714 15,0 61,5 24 10,0 14,900 15,820 25
25 - 35 rot 2 6 - 35 • K 416806 6,5 49,5 27 12,0 18,500 20,100 25
red
8 - 35 • K 416808 8,5 54,0 27 12,0 20,000 21,600 25
10 - 35 • K 416810 10,5 59,0 27 12,0 21,300 22,900 25
12 - 35 • K 416812 13,0 61,0 27 12,0 21,200 22,800 25
14 - 35 • K 416814 15,0 64,5 27 12,0 21,800 23,400 25
16 - 35 • K 416816 17,0 68,0 27 12,0 22,400 24,000 25
35 - 50 blau 1/0 6 - 50 • K 416906 6,5 59,0 32 14,0 30,000 32,200 25
blue
8 - 50 • K 416908 8,5 59,0 32 14,0 29,300 31,500 25
10 - 50 • K 416910 10,5 63,0 32 14,0 30,800 33,000 25
12 - 50 • K 416912 13,0 68,0 32 14,0 32,300 34,500 25
14 - 50 • K 416914 15,0 71,5 32 14,0 33,200 35,400 25
16 - 50 • K 416916 17,0 77,0 32 14,0 33,800 36,000 25
20 - 50 • K 416920 21,0 83,5 32 14,0 34,600 36,800 25
