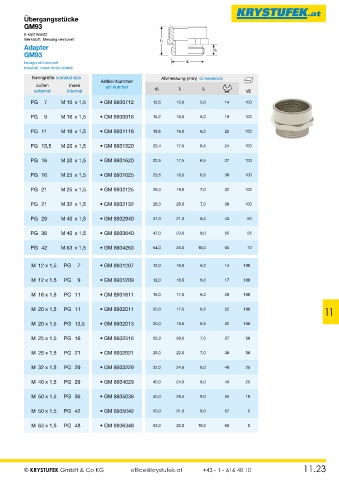

Page 165 - Krystufek_Gesamt-Katalog

Übergangsstücke
GM93
6-kant Ansatz
Werkstoff: Messing vernickelt l 1
Adapter l 2
GM93
hexagonal lowerpart d 1
material: brass nickel-plated
Nenngröße nominal size Abmessung (mm) dimensions
Artikel-Nummer
außen innen art-number
external internal d1 l1 l2 VE

PG 7 M 16 x 1,5 • GM 8930712 12,5 15,0 5,0 14 100

PG 9 M 16 x 1,5 • GM 8930916 15,2 16,0 6,0 19 100

PG 11 M 16 x 1,5 • GM 8931116 18,6 16,0 6,0 22 100

PG 13,5 M 20 x 1,5 • GM 8931320 20,4 17,5 6,5 24 100

PG 16 M 20 x 1,5 • GM 8931620 22,5 17,5 6,5 27 100

PG 16 M 25 x 1,5 • GM 8931625 22,5 18,5 6,5 30 100

PG 21 M 25 x 1,5 • GM 8932125 28,3 19,0 7,0 32 100

PG 21 M 32 x 1,5 • GM 8932132 28,3 20,0 7,0 36 100

PG 29 M 40 x 1,5 • GM 8932940 37,0 21,0 8,0 43 50

PG 36 M 40 x 1,5 • GM 8933640 47,0 23,0 9,0 55 25

PG 42 M 63 x 1,5 • GM 8934263 54,0 25,0 10,0 65 10

M 12 x 1,5 PG 7 • GM 8931207 12,0 16,0 6,0 14 100

M 12 x 1,5 PG 9 • GM 8931209 12,0 16,5 6,0 17 100

M 16 x 1,5 PG 11 • GM 8931611 16,0 17,0 6,0 20 100

11
M 20 x 1,5 PG 11 • GM 8932011 20,0 17,5 6,5 22 100
M 20 x 1,5 PG 13,5 • GM 8932013 20,0 19,0 6,5 22 100

M 25 x 1,5 PG 16 • GM 8932516 25,0 20,5 7,0 27 50

M 25 x 1,5 PG 21 • GM 8932521 25,0 22,0 7,0 30 50

M 32 x 1,5 PG 29 • GM 8933229 32,0 24,5 8,0 40 25

M 40 x 1,5 PG 29 • GM 8934029 40,0 24,5 8,0 43 25

M 50 x 1,5 PG 36 • GM 8935036 50,0 28,5 9,0 55 10

M 50 x 1,5 PG 42 • GM 8935042 50,0 31,0 9,0 57 5

M 63 x 1,5 PG 48 • GM 8936348 63,0 33,0 10,0 65 5
