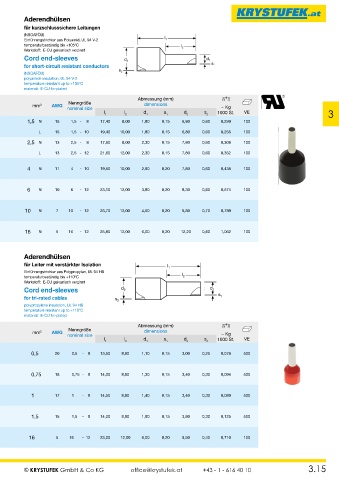

Aderendhülsen
für kurzschlusssichere Leitungen
(NSGAFÖU)
Einführungstrichter aus Polyamid, UL 94 V-2
temperaturbeständig bis +105°C
Werkstoff: E-CU galvanisch verzinnt
Cord end-sleeves
for short-circuit resistant conductors
(NSGAFÖU)
polyamide insulation, UL 94 V-2
temperature resistant up to +105°C
material: E-CU tin-plated
WE TM DIN Abmessung (mm)
Nenngröße
mm 2 Farbkennung Art.-Nummer Farbkennung Art.-Nummer Farbkennung Art.-Nummer mm 2 AWG nominal size dimensions ~ Kg
colour-code art-number colour-code art-number colour-code art-number l 1 l 2 d 1 s 1 d 2 s 2 1000 St. VE 3
1,5 N rot • A01557XL schwarz • A01555XL schwarz • A01555XL 1,5 N 15 1,5 - 8 17,40 8,00 1,80 0,15 6,80 0,60 0,239 100
L red • A01577XL black • A01575XL black • A01575XL L 15 1,5 - 10 19,40 10,00 1,80 0,15 6,80 0,60 0,255 100
2,5 N blau • A02555XL grau • A02552XL blau • A02555XL 2,5 N 13 2,5 - 8 17,60 8,00 2,30 0,15 7,80 0,60 0,308 100
L blue • A02575XL grey • A02572XL blue • A02575XL L 13 2,5 - 12 21,60 12,00 2,30 0,15 7,80 0,60 0,352 100
grau orange grau
4 N • A04055XL • A04052XL • A04055XL 4 N 11 4 - 10 19,50 10,00 2,90 0,20 7,80 0,60 0,438 100
grey orange grey
schwarz grün gelb
6 N • A06057XL • A06052XL • A06055XL 6 N 10 6 - 12 23,10 12,00 3,80 0,20 8,30 0,60 0,674 100
black green yellow
elfenb. braun rot
10 N • A10057XL • A10052XL • A10055XL 10 N 7 10 - 12 23,70 12,00 4,50 0,20 9,80 0,70 0,789 100
ivory brown red
grün weiß blau
16 N • A16057XL • A16052XL • A16055XL 16 N 5 16 - 12 25,80 12,00 6,00 0,20 12,20 0,60 1,062 100
green white blue
Aderendhülsen
für Leiter mit verstärkter Isolation
Einführungstrichter aus Polypropylen, UL 94 HB
temperaturbeständig bis +110°C
Werkstoff: E-CU galvanisch verzinnt
Cord end-sleeves
for tri-rated cables
polypropylene insulation, UL 94 HB
temperature resistant up to +110°C
material: E-CU tin-plated
WE TM DIN Abmessung (mm)
Nenngröße
mm 2 Farbkennung Art.-Nummer Farbkennung Art.-Nummer Farbkennung Art.-Nummer mm 2 AWG nominal size dimensions ~ Kg
colour-code art-number colour-code art-number colour-code art-number l l d s d s 1000 St. VE
1 2 1 1 2 2
orange weiß weiß
0,5 N • A00557GB • A00555GB • A00555GB 0,5 20 0,5 - 8 13,50 8,00 1,10 0,15 3,00 0,25 0,078 500
orange white white
weiß hellblau grau
0,75 N • A00757GB • A00752GB • A00755GB 0,75 18 0,75 - 8 14,00 8,00 1,30 0,15 3,40 0,30 0,094 500
white light-blue grey
gelb rot rot
1 N • A01057GB • A01055GB • A01055GB 1 17 1 - 8 14,50 8,00 1,40 0,15 3,40 0,30 0,089 500
yellow red red
rot schwarz schwarz
1,5 N • A01557GB • A01555GB • A01555GB 1,5 15 1,5 - 8 14,00 8,00 1,80 0,15 3,80 0,30 0,125 500
red black black
grün weiß blau
16 N • A16057GB • A16052GB • A16055GB 16 5 16 - 12 23,00 12,00 6,00 0,20 9,50 0,40 0,710 100
green white blue
