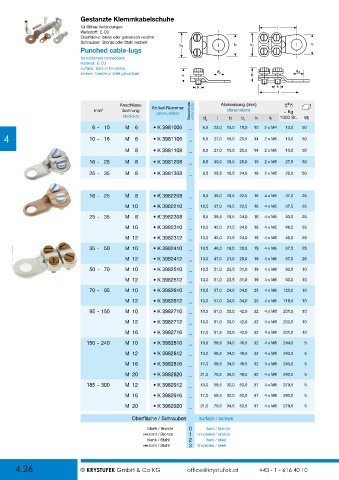

Page 66 - Krystufek_Gesamt-Katalog

Gestanzte Klemmkabelschuhe h k d 3 h k l d 3
für lötfreie Verbindungen l
Werkstoff: E-CU
Oberfläche: blank oder galvanisch verzinnt
Schrauben: Bronze oder Stahl verzinkt b b
b 1 b 1
Punched cable-lugs
for solderless connections
material: E-CU
surface: bare or tin-plated
screws: bronze or steel galvanised d 3 d 3
h h
k k l

Anschluss- Abmessung (mm)
mm 2 bohrung Artikel-Nummer Bestellcode order code dimensions ~ Kg
stud-size art-number d 3 l b b 1 h k 1000 St. VE
6 - 10 M 6 • K 3981006 .. 6,5 23,0 15,0 18,0 10 2 x M4 l 13,0 50
4 10 - 16 M 6 • K 3981106 .. 6,5 27,0 15,0 20,5 14 2 x M5 13,0 50

M 8 • K 3981108 b 1 .. 8,5 27,0 15,0 b 20,5 b 1 14 2 x M5 13,0 50 b

16 - 25 M 8 • K 3981208 .. 8,5 30,0 15,0 25,0 16 2 x M5 27,5 50
25 - 35 M 8 • K 3981308 .. 8,5 25,5 18,5 24,0 16 2 x M5 25,0 50

16 - 25 M 8 • K 3982208 .. 8,5 36,0 18,5 22,5 16 4 x M5 37,0 25
M 10 • K 3982210 .. 10,5 37,0 19,5 22,5 16 4 x M5 37,5 25

25 - 35 M 8 • K 3982308 .. 8,5 38,5 18,5 24,0 16 4 x M5 43,0 25
M 10 • K 3982310 .. 10,5 42,0 21,5 24,0 16 4 x M5 46,5 25

M 12 • K 3982312 .. 13,0 42,0 21,5 24,0 16 4 x M5 45,0 25
35 - 50 M 10 • K 3982410 .. 10,5 46,0 19,0 28,0 19 4 x M6 67,5 25
M 12 • K 3982412 .. 13,0 47,0 21,0 28,0 19 4 x M6 67,0 25
50 - 70 M 10 • K 3982510 .. 10,5 51,0 23,5 31,0 19 4 x M6 93,5 10

M 12 • K 3982512 .. 13,0 51,0 23,5 31,0 19 4 x M6 93,0 10
70 - 95 M 10 • K 3982610 .. 10,5 57,0 24,0 34,0 25 4 x M6 120,0 10
M 12 • K 3982612 .. 13,0 57,0 24,0 34,0 25 4 x M6 118,5 10

95 - 150 M 10 • K 3982710 .. 10,5 61,0 30,0 42,0 32 4 x M8 201,5 10
M 12 • K 3982712 .. 13,0 61,0 30,0 42,0 32 4 x M8 202,0 10
M 16 • K 3982716 .. 17,0 61,5 30,0 42,0 32 4 x M8 201,0 10
150 - 240 M 10 • K 3982810 .. 10,5 68,5 34,0 48,5 32 4 x M8 244,0 5

M 12 • K 3982812 .. 13,0 68,5 34,0 48,5 32 4 x M8 243,5 5
M 16 • K 3982816 .. 17,0 68,5 34,0 48,5 32 4 x M8 243,0 5
M 20 • K 3982820 .. 21,0 70,5 36,0 48,5 32 4 x M8 242,5 5

185 - 300 M 12 • K 3982912 .. 13,0 68,5 32,0 50,0 37 4 x M8 279,5 5
M 16 • K 3982916 .. 17,0 68,5 32,0 50,0 37 4 x M8 280,0 5
M 20 • K 3982920 .. 21,0 70,5 34,5 50,5 37 4 x M8 279,5 5

Oberfläche / Schrauben surface / screws
blank / Bronze 0 bare / bronze
verzinnt / Bronze 1 tin-plated / bronze
blank / Stahl 2 bare / steel
verzinnt / Stahl 3 tin-plated / steel

4.26 © KRYSTUFEK GmbH & Co KG office@krystufek.at +43 - 1 - 616 40 10
