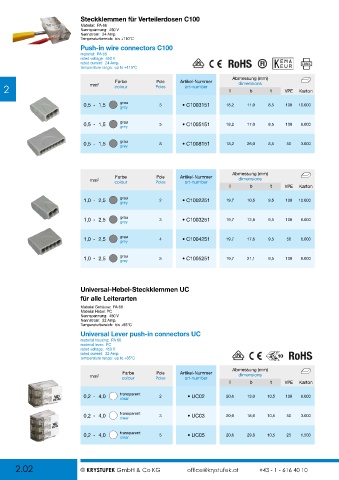

Steckklemmen für Verteilerdosen C100
Material: PA 66
Nennspannung: 450 V
Nennstrom: 24 Amp.
Temperaturbereich: bis +110°C
Push-in wire connectors C100
material: PA 66
rated voltage: 450 V
rated current: 24 Amp.
temperature range: up to +110°C
Abmessung (mm)
Farbe Pole Artikel-Nummer dimensions
2 mm colour Poles art-number l b t VPE Karton
2
0,5 - 1,5 grau 3 • C1003151 18,2 11,0 8,5 100 10.000
grey
0,5 - 1,5 grau 5 • C1005151 18,2 17,0 8,5 100 6.000
grey
0,5 - 1,5 grau 8 • C1008151 18,2 26,0 8,5 50 3.000
grey
Abmessung (mm)
Farbe Pole Artikel-Nummer
mm 2 colour Poles art-number dimensions
l b t VPE Karton
1,0 - 2,5 grau 2 • C1002251 19,7 10,5 9,5 100 10.000
grey
1,0 - 2,5 grau 3 • C1003251 19,7 13,8 9,5 100 6.000
grey
1,0 - 2,5 grau 4 • C1004251 19,7 17,6 9,5 50 6.000
grey
1,0 - 2,5 grau 5 • C1005251 19,7 21,1 9,5 100 6.000
grey
Universal-Hebel-Steckklemmen UC
für alle Leiterarten
Material Gehäuse: PA 66
Material Hebel: PC
Nennspannung: 450 V
Nennstrom: 32 Amp.
Temperaturbereich: bis +85°C
Universal Lever push-in connectors UC
material housing: PA 66
material lever: PC
rated voltage: 450 V
rated current: 32 Amp.
temperature range: up to +85°C
Abmessung (mm)
Farbe Pole Artikel-Nummer
mm 2 colour Poles art-number dimensions
l b t VPE Karton
0,2 - 4,0 transparent 2 • UC02 20,6 13,0 10,5 100 6.000
clear
0,2 - 4,0 transparent 3 • UC03 20,6 18,6 10,5 50 3.000
clear
0,2 - 4,0 transparent 5 • UC05 20,6 29,8 10,5 25 1.500
clear
